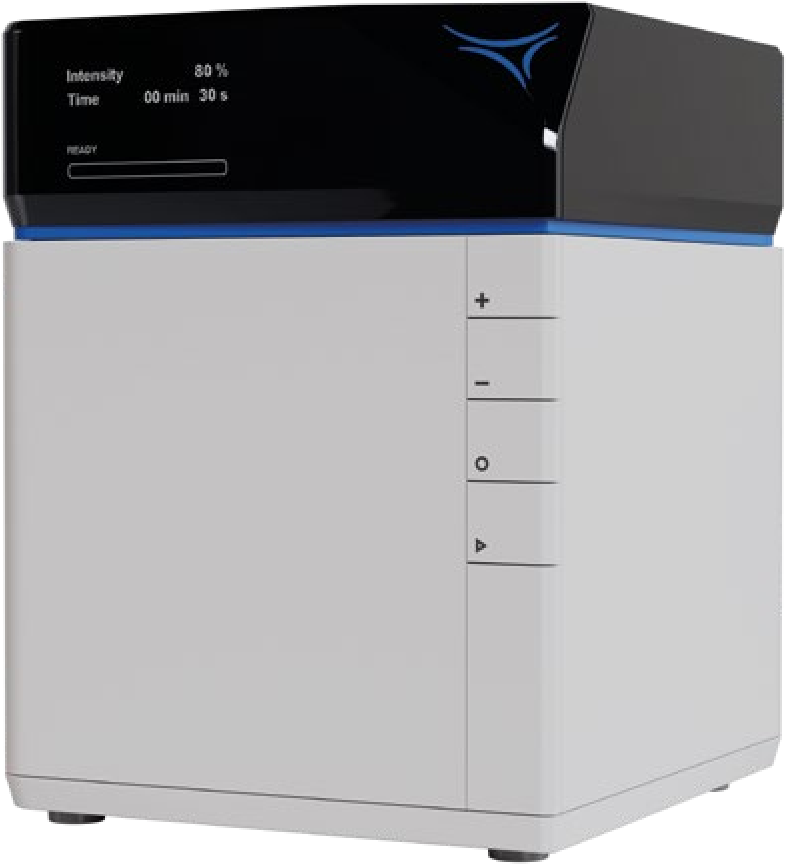

ibidi Micro Illumination System
ibidi Micro Illumination System
-
User-Friendly
Easy-to-use interface and versatile light-induced 2D / 3D microfabrication -
Build Microphysiological Models
Create ready-to-use applications directly on ibidi μ-Slides and μ-Dishes -
Compact Benchtop Design
Stand alone device for wet lab environments—no cleanroom required
3D Microstructuring
Light-Induced Wounding
Micropatterning

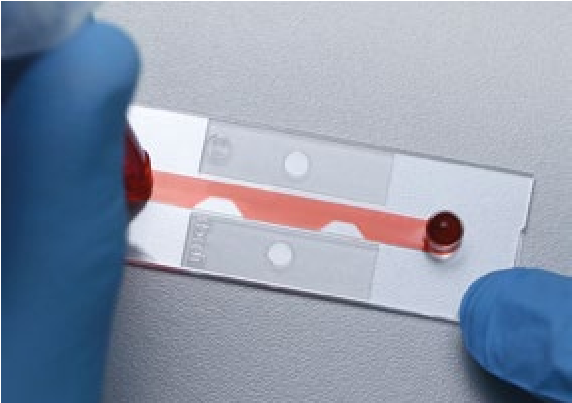

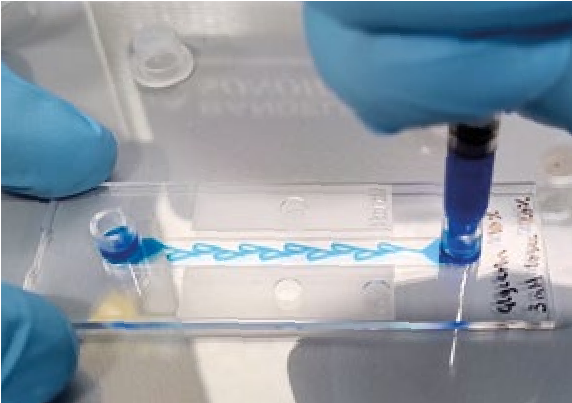

Microfluidics & -chips
Hydrogel-Structuring
Photo Click Chemistry
Specifications
Light Source | High-power UV LED |
Wavelength | 365 nm |
Intensity | 20 mW/cm² (@20%) – 100 mW/cm² (@100%) |
Time | 1 s – 59 min, 59 s |
Divergence | ≤ 3° |
Illumination area | ⌀ 70 mm |
Compatible photomasks | 3″ masks, thickness 1.4–1.8 mm |
Nominal resolution | 2 µm |
Recommended feature size | >10 µm |
Outer dimensions
(l × w × h) | 200 mm × 215 mm × 260 mm |
Weight | 6.6 kg / 14.6 lbs |
Material | Multi-material construction |
