µ-Slide I 0.4 Luer Glass Bottom

µ-Slide I 0.4 Luer Glass Bottom

Channel slides with a #1.5H glass bottom for flow applications; different heights and volumes available

  • Large area of uniform shear stress
  • Easy connection using Luer adapters
  • Homogeneous cell distribution with defined optical pathway
  • Super-resolution and TIRF possible due to the #1.5H glass substrate
Part No.: N/A
Quantity

Estimated delivery about 4 weeks after receiving order.

Applications

  • Adherent cells under flow conditions
  • Cell culture (static or stop-flow)
  • Simulation of blood vessels with endothelial cells
  • High-resolution microscopy of living and fixed cells
  • TIRF and super-resolution microscopy

Specifications

Outer dimensions 25.5 x 75.5 mm² (w x l)
Channel length 50 mm
Channel width 5 mm
Adapters Female Luer
Volume per reservoir 60 μl
Growth area 2.5 cm²
Bottom: Glass coverslip No. 1.5H, selected quality, 170 µm +/- 5 µm
µ-Slide I Luer Glass Bottom 0.2 0.4 0.6 0.8
Channel height 250 µm 450 µm 650 µm 850 µm
Channel volume 62.5 µl 112.5 µl 162.5 µl 212.5 µl
Coating area 5.2 cm² 5.4 cm² 5.6 cm² 5.8 cm²

Technical Features

  • Standard format with thin coverslip bottom made from D 263 M Schott glass #1.5H (170 µm +/- 5 µm) for low or high magnification microscopy
  • Large observation area for microscopy
  • Defined shear stress and shear rate levels
  • Easy connection to tubes and pumps using Luer adapters
  • Fully compatible with the ibidi Pump System
  • May require coating to promote cell attachment

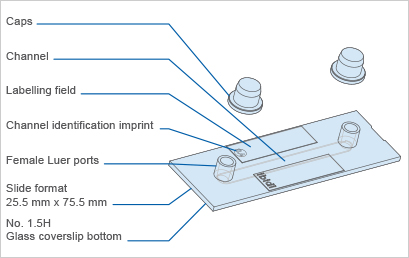

width=
